application

The product is suitable for measuring the pressure and vacuum of non viscous, non caking, and non corrosive gas and liquid media. Widely used in industries such as petroleum, chemical, synthetic fiber, metallurgy, power plants, pharmaceuticals, and food; Adopting an airtight shell structure can effectively protect internal components from environmental pollution

Technical Specifications

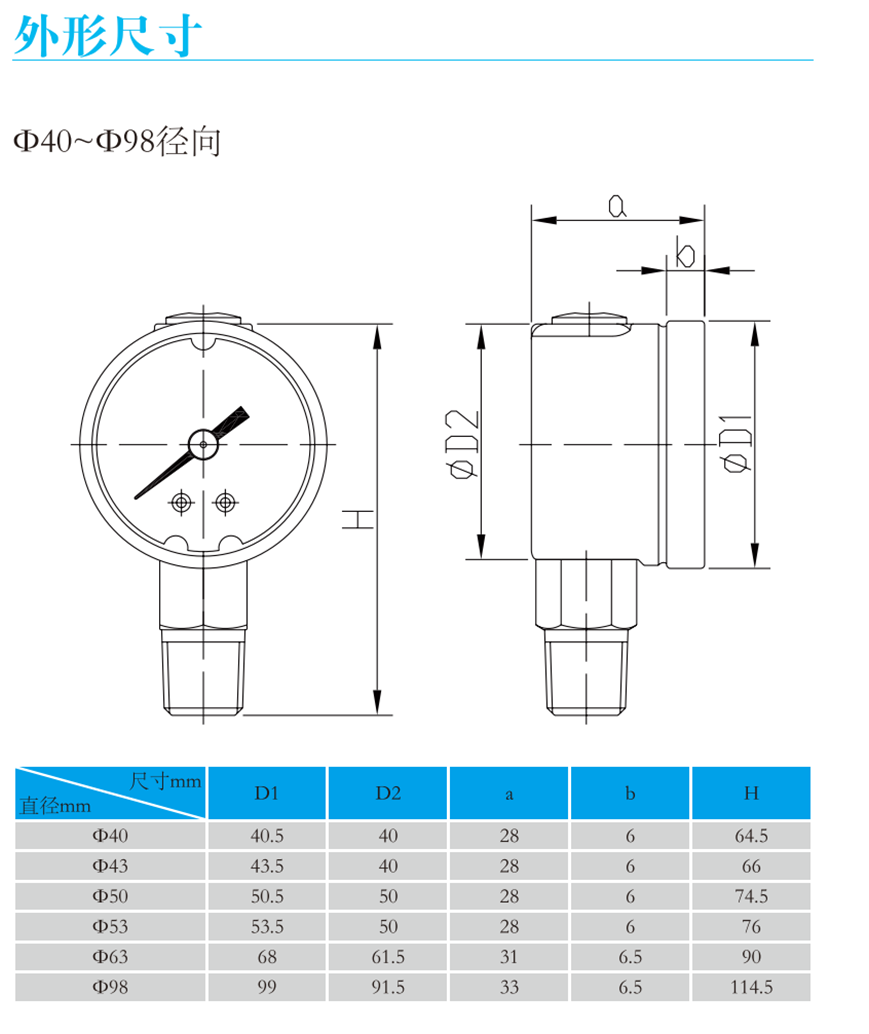

Nominal diameter: Ø 40, Ø 43, Ø 50, Ø 53, Ø 60

Ф63、 Middle 98 Ф100、 150 in the middle

Accuracy level: Ø 40~Ø 63 2.5 level

C98~Ø 150 Grade 1.0, Grade 1.6

Measurement range: -0.1~0~0.1... 60MPa

Or other equivalent pressure vacuum range

Environmental temperature: -40 ℃~70 ℃

Medium temperature: -40 ℃~80 ℃

When the ambient temperature deviates from 20 ℃ ± 5 ℃, the indication error of the instrument shall not exceed 0.04%/℃.

Process connection: Ø 40~Ø 98 M14x1.5 (customizable according to user requirements) Ø 100~Ø 150 M20x1.5 (customizable according to user requirements) Pressure sensing element:<10MPa C-type tube

≥ 10 MPa spiral tube

Liquid receiving material: Copper alloy

Case material: 304SS (316SS optional)

Instrument glass: Medium 60 Ф100、 150 in the middle

Flat glass (safety glass optional) Other polycarbonate protection levels: IP65, IP66
