application

The product is suitable for harsh and corrosive environments, measuring non viscous, non crystalline, and slightly corrosive gas and liquid media. There is a safety partition designed inside the table to protect the safety of the observation surface. The back is equipped with a pressure relief cover to release the internal pressure caused by the rupture of the overload elastic element, enhancing the safety of personnel and facilities. Mainly used in industries such as petroleum, chemical, metallurgy, power, food, medicine, environmental protection, machinery, and shipbuilding.

Technical Specifications

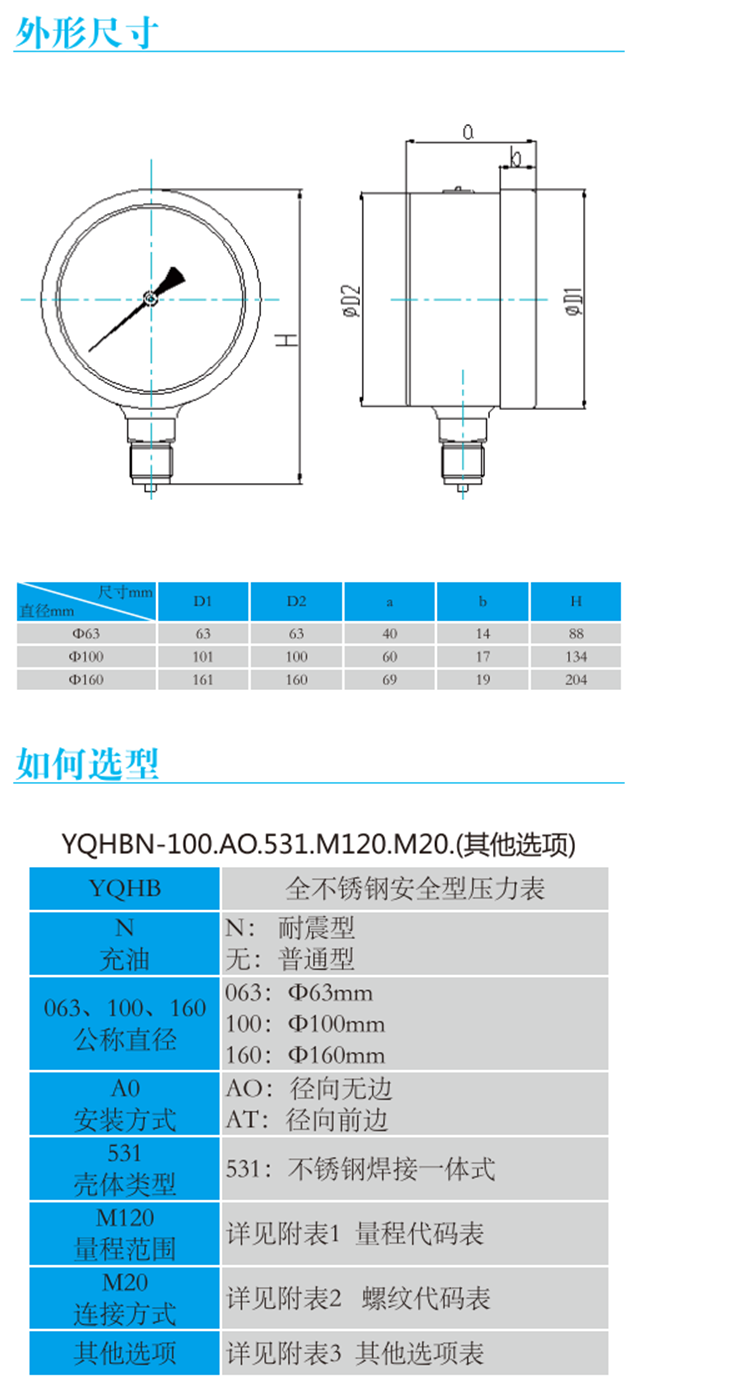

Nominal diameter: 63mm, 100mm, 160mm

Accuracy level: Ø 63 2.5 level

Ø 100, Ø 160 Grade 1.0, Grade 1.6

Measurement range: -0.1~0~0.06... 60Mpa

Or other equivalent pressure vacuum range

Environmental temperature: -40 ℃~60 ℃

Medium temperature: -40 ℃~100 ℃

When the ambient temperature deviates from 20 ℃ ± 5 ℃, the indication error of the instrument shall not exceed 0.04%/℃. Process connections: Ø 63 M14x1.5, 1/4 "NPT Ø 100, Ø 160 M20x1.5, 1/2" NPT (can be customized according to user requirements) Pressure sensing element:<10MPa C-type tube ≥ 10 MPa spiral tube

Liquid receiving material: 316L (optional Monel)

Shell material: 316L

Instrument pointer: aluminum alloy, black

Instrument dial: aluminum alloy, white background with black letters

Sealing material: Silicone rubber

Instrument glass: safety glass

Protection level: IP65, IP66

option

Diaphragm chemical seal

Dual range dial

Instrument fluid filling (glycerin, silicone oil, fluorine oil, etc.)

Heat sink (can adapt to higher medium temperatures)
