application

The product is made of an integral all plastic structure and is suitable for measuring gas and liquid media with strong corrosiveness or corrosive environments. Widely used in industries such as chemical, synthetic fiber, metallurgy, power, machinery, environmental protection, electronics, etc.

Technical Specifications

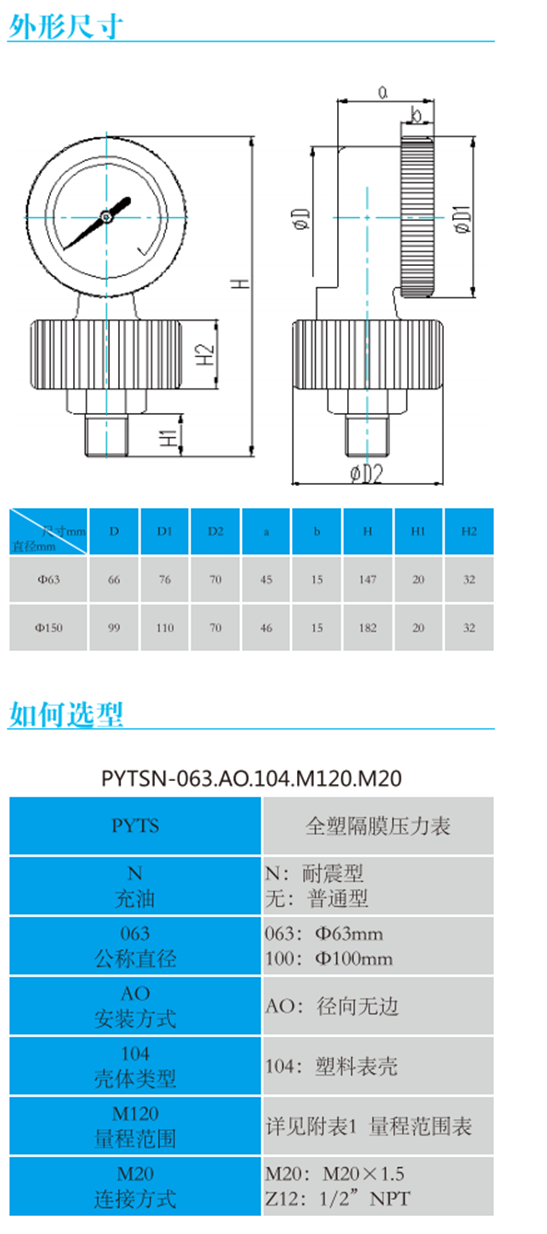

Nominal diameter: 63mm, Ø 100mm

Accuracy level: 1.6 level, 2.5 level

Measurement range: -0.1~0~0.1... 1.6MPa

Environmental temperature: -40 ℃~70 ℃

Medium temperature: -40 ℃~100 ℃

When the temperature of the measurement system deviates from 20 ± 5 ℃, the setting error does not change by more than 0.04%/℃. Protection level: IP65

Connection thread: M20x1.5, 1/2 "NPT

Pressure sensing element: C-type tube

Wetting material: PP+fluororubber

Case material: PP

Internal material: Copper alloy (optional 316SS)

Instrument pointer: aluminum alloy, black

Instrument dial: Aluminum alloy, white background with black letters

Instrument glass: polycarbonate

Diaphragm filling: glycerol, aqueous solution (silicone oil optional)
