application

The product transmits the measured value as electrical value to a secondary instrument far away from the measuring point through the sliding resistance transmitter inside the instrument, in order to achieve centralized detection and remote control. In addition, this instrument can also indicate pressure locally (for on-site process inspection). Mainly used in industries such as petroleum, chemical, metallurgy, power, food, medicine, environmental protection, machinery, HVAC, etc.

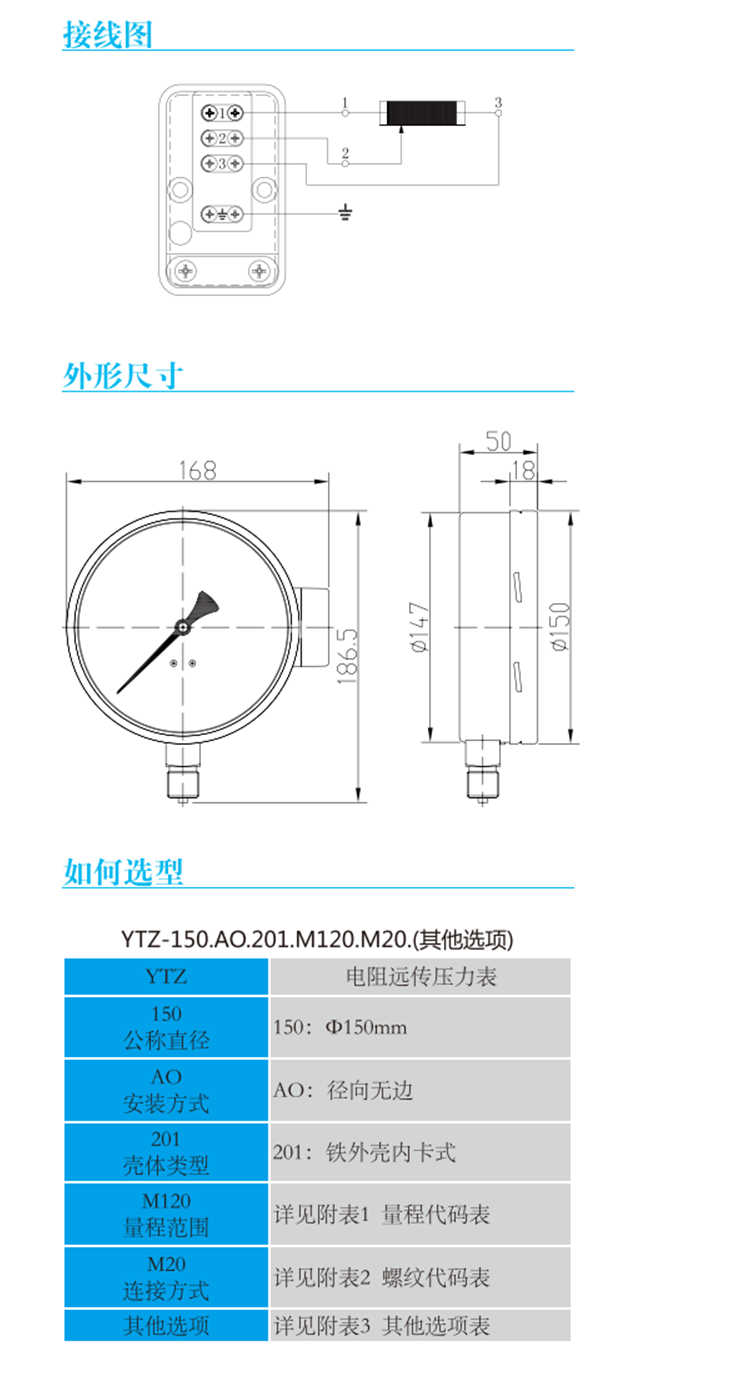

Technical Specifications

Nominal diameter: Ø 150mm

Accuracy level: 1.6 level

Measurement range: -0.1~0~0.1... 60MPa

Or other equivalent pressure vacuum range

Environmental temperature: -40 ℃~70 ℃

Medium temperature: -40 ℃~100 ℃. When the ambient temperature deviates from 20 ℃ ± 5 ℃, the indication error of the instrument shall not exceed 0.04%/℃

Zero point resistance value: 42~202

Full resistance value: 3402~4002

Terminal power supply mode: ≤ 6VIDC)

Process connection: M20x1.5 (customizable according to user requirements)

Pressure sensing element:<10MPa C-type tube

>10MPa spiral tube

Liquid receiving material: Copper alloy

Table shell material: carbon steel spray coated instrument pointer: aluminum alloy, black

Instrument dial: aluminum alloy, white background with black letters

Instrument glass: Flat glass

Protection level: IP54

option

Diaphragm chemical seal

Dual range dial
