application

The product is used to measure gases or liquid media with slight corrosiveness and environments with strong corrosiveness. Mainly used in industries such as petroleum, chemical, metallurgy, power, food, medicine, environmental protection, and machinery.

Technical Specifications

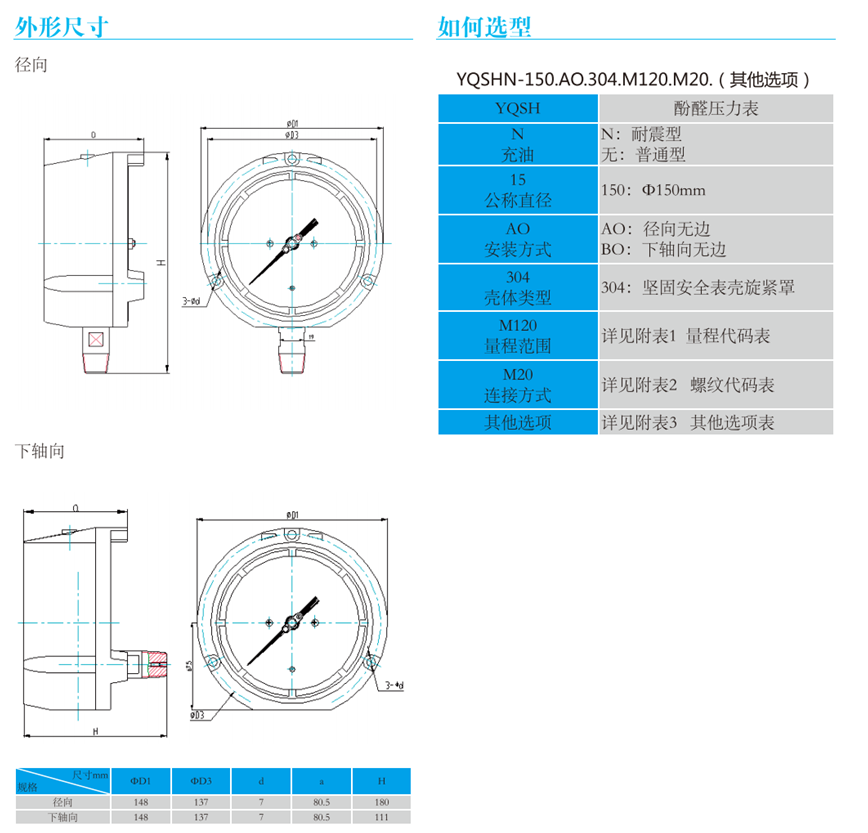

Nominal diameter: Ø 150mm

Accuracy level: 1.0 level, industrial 0.5 level

Measurement range: -0.1~0~0.06... 160Mpa

Or other equivalent pressure vacuum range

Environmental temperature: -40 ℃~60 ℃

Medium temperature: -40 ℃~100 ℃

When the ambient temperature deviates from 20 ℃ ± 5 ℃, the indication error of the instrument shall not exceed 0.04%/℃.

Process connection: M20x1.5, 1/2 "NPT, G1/2"

Customizable according to user requirements

Pressure sensing element:<10MPa C-type tube

≥ 10 MPa spiral tube

Liquid receiving material: 316SS

Shell material: Phenolic resin

Instrument movement: 304SS

Instrument pointer: aluminum alloy, black

Instrument dial: 4 aluminum alloy, white background with black letters

Nitrile rubber sealing material:

Instrument glass: safety glass

Protection level: IP65
