application

The product is suitable for gases, liquids, corrosive media, and corrosive environments; Measurement points with high requirements for overvoltage safety can provide protection up to 10 times the range; Widely used in industries such as petroleum, chemical, metallurgy, power, food, medicine, environmental protection, and machinery.

Technical Specifications

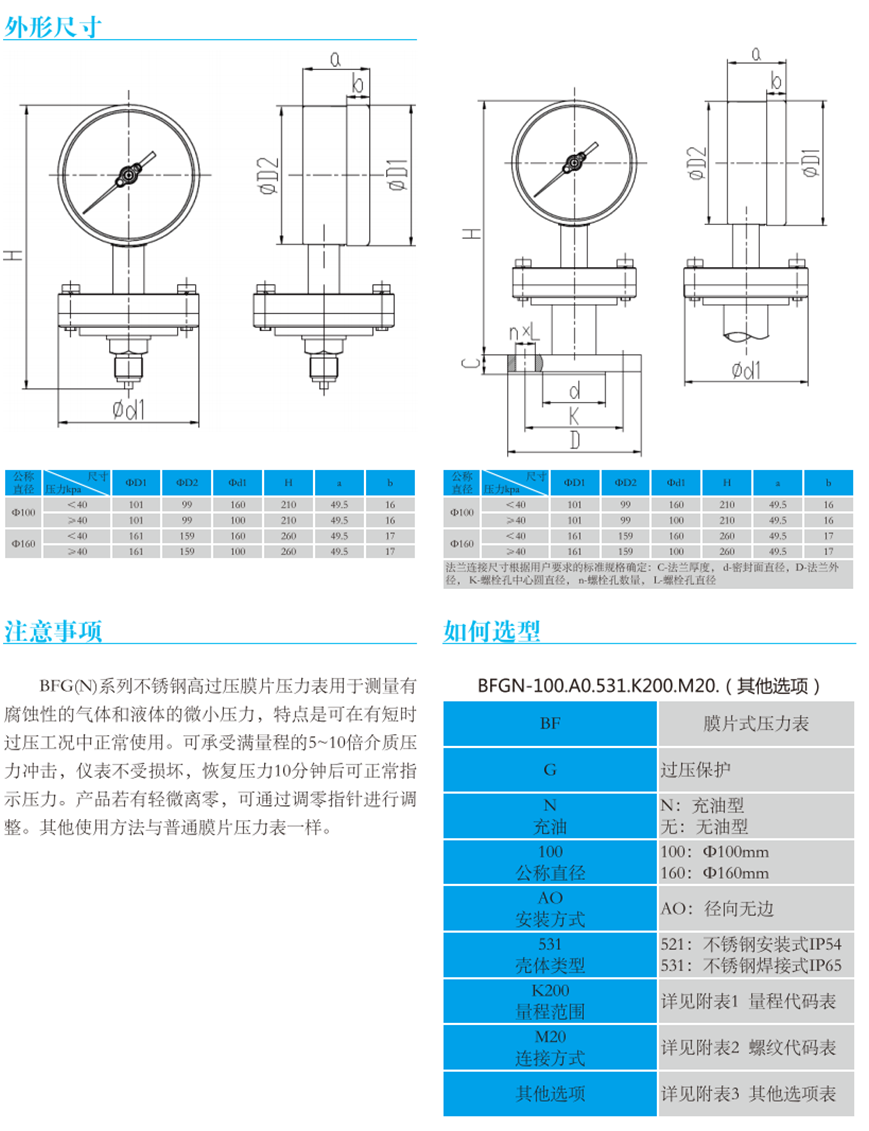

Nominal diameter: 100mm, 160mm

Accuracy level: 1.6 level, 2.5 level

Measurement range: 0~4kPa... 0.1MPa

Or other equivalent pressure vacuum range

Static pressure: Full range

Dynamic pressure: Full scale x 90%

Overvoltage range: range x10, maximum 1.6MPa

Environmental temperature: -20 ℃~60 ℃

Medium temperature: -40 ℃~100 ℃

When the temperature of the measurement system deviates from 20 ± 5 ℃, the set error change shall not exceed 0.04%/℃. Process connections: M20x1.5, 1/2 "NPT, G1/2"

(Customizable flange or thread according to user requirements)

Liquid receiving material: 316SS

Case material: 304SS (316SS optional)

Material of the movement: 304SS

Pressure sensing element: diaphragm

Pointer: Aluminum alloy, black, adjustable zero

Dial: Aluminum alloy, white background with black letters

Sealing material: Nitrile rubber

Instrument glass: safety glass

Protection level: IP54, IP65, IP66

option

Dual range dial

Instrument fluid filling: glycerin, silicone oil, fluorine oil and other radiators (can adapt to higher medium temperatures)

Material film: HaC, Ta, Ti, Zr, etc

Surface treatment: spraying PTFE, lining PTFE, etc
