application

The product is suitable for measuring the differential pressure of non viscous and non caking gas liquid media, and can be used for monitoring and controlling pumps, filters, etc; It can also be used for liquid level measurement inside sealed tanks. Widely used in industries such as petroleum, chemical, metallurgy, power, food, medicine, environmental protection, and machinery.

Technical Specifications

Nominal diameter: Medium 100mm, Medium 160mm

Accuracy level: 1.6 level, 2.5 level

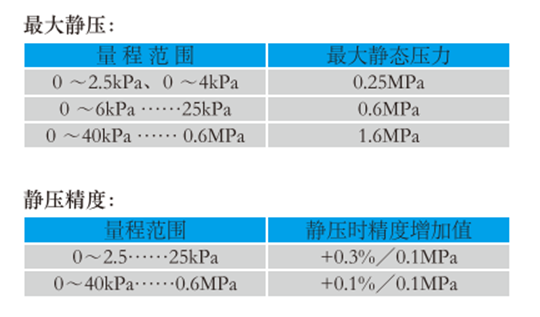

Measurement range: 0~2.5kPa... 0.1MPa

Environmental temperature: -20 ℃~60 ℃

Medium temperature: -40 ℃~100 ℃

When the temperature of the measurement system deviates from 20+5 ℃, the set error change shall not exceed 0.5%/10 ℃. Process connections: M20x1.5, 1/2 "NPT, G1/2 (can be customized according to user requirements)

Liquid receiving material: 316SS

Case material: 304SS (316SS optional)

Material of the movement: 304SS

Pressure sensing element: diaphragm+bellows

Pointer: Aluminum alloy, black, adjustable zero

Dial: Aluminum alloy, white background with black letters

Sealing material: Nitrile rubber

Instrument glass: safety glass

Protection level: IP54, IP65, IP66

option

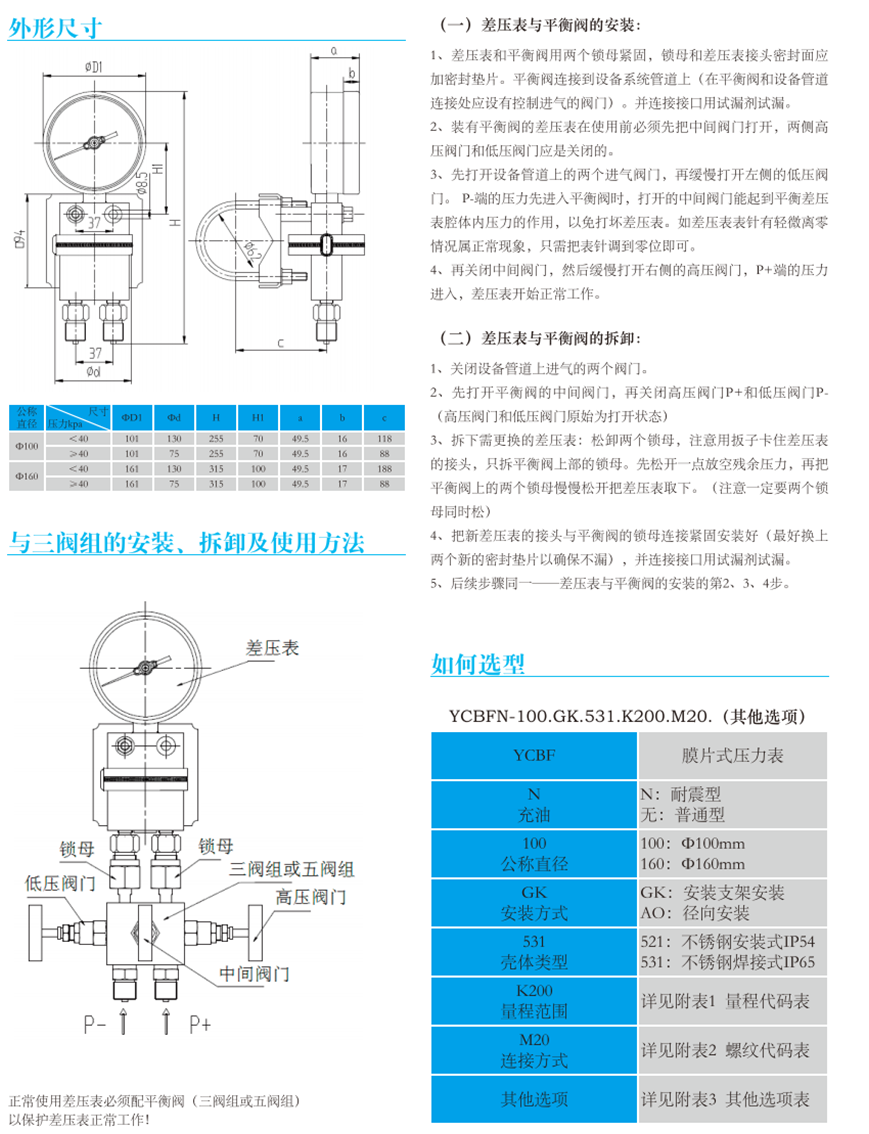

Balance valve (three valve group or five valve group)

Diaphragm chemical sealing, long tail, etc

Instrument fluid filling (glycerin, silicone oil, fluorine oil, etc.)

Dual range dial (or non-standard dial requested by the customer)

Installation bracket (installed on the wall or pipeline)

Electric contact (control circuit on/off and remote transmission output)
