application

The product is suitable for measuring differential pressure, flow rate, and other parameters of various liquid (gas) media in the process flow of industrial sectors such as chemical, brazing, metallurgy, power, and nuclear power. The connection forms of instrument connectors include parallel type (which can be directly connected to a three valve group) and oblique type, which can adapt to the matching installation of different customers. Widely used in industries such as petroleum, chemical, metallurgy, power, food, medicine, environmental protection, and machinery.

Technical Specifications

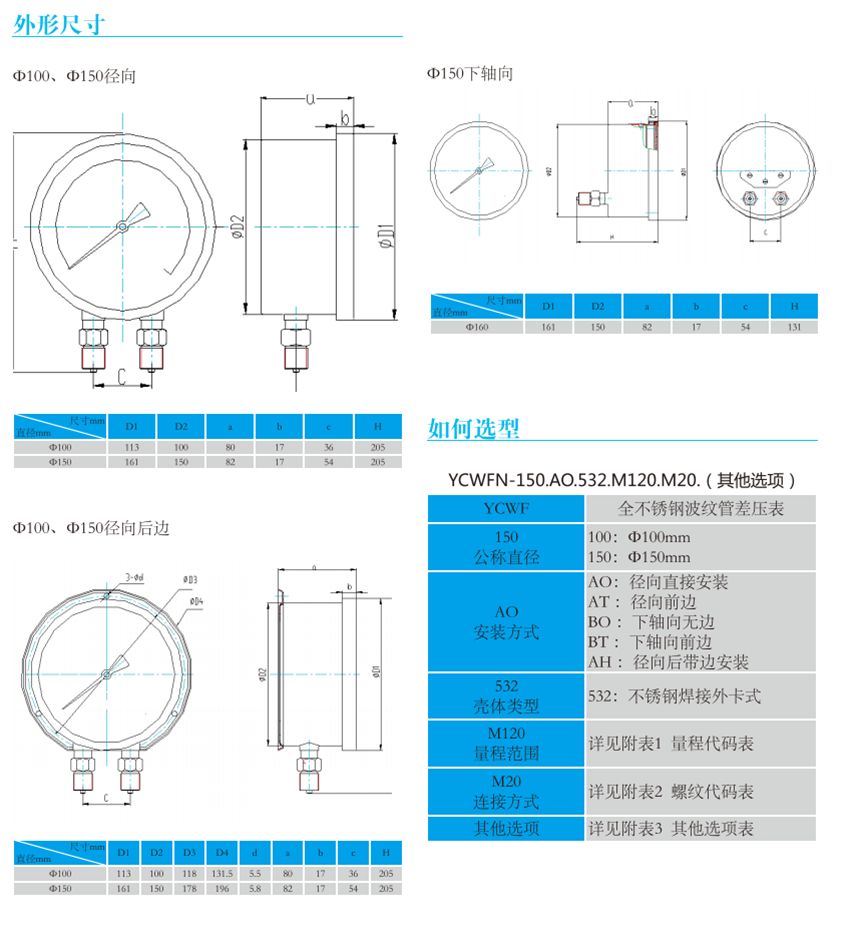

Nominal diameter: 100mm, 150mm

Accuracy level: 1.6 level, 2.5 level

Measurement range: 0~60kPa...... 2.5MPa

Or other equivalent pressure vacuum range

Static pressure value: 0 to 1.6MPa is 10 times the range

2.5 MPa is four times the range

Environmental temperature: -20 ℃~70 ℃

Medium temperature: -40 ℃~100 ℃

When the temperature of the measurement system deviates from 20 ± 5 ℃. The setting error does not change by more than 0.04%/℃

Process connection: M20x1.5, 1/2 "NPT, G1/2"

Customized according to customer requirements

Liquid receiving material: 316SS

Case material: 304SS (316SS optional)

Material of the movement: 304SS

Pressure sensing element: corrugated tube

Instrument pointer: aluminum alloy, black

Instrument dial: aluminum alloy, white background with black letters

Instrument glass: safety glass

Protection level: IP65, IP66
