application

The product is suitable for non viscous, non crystalline, and slightly corrosive gas and liquid media, measuring their pressure and vacuum. It is also used to control and regulate related industrial production processes, monitor equipment, and control circuit on/off. Widely used in industries such as petroleum, chemical, metallurgy, power, food, medicine, environmental protection, and machinery.

Technical Specifications

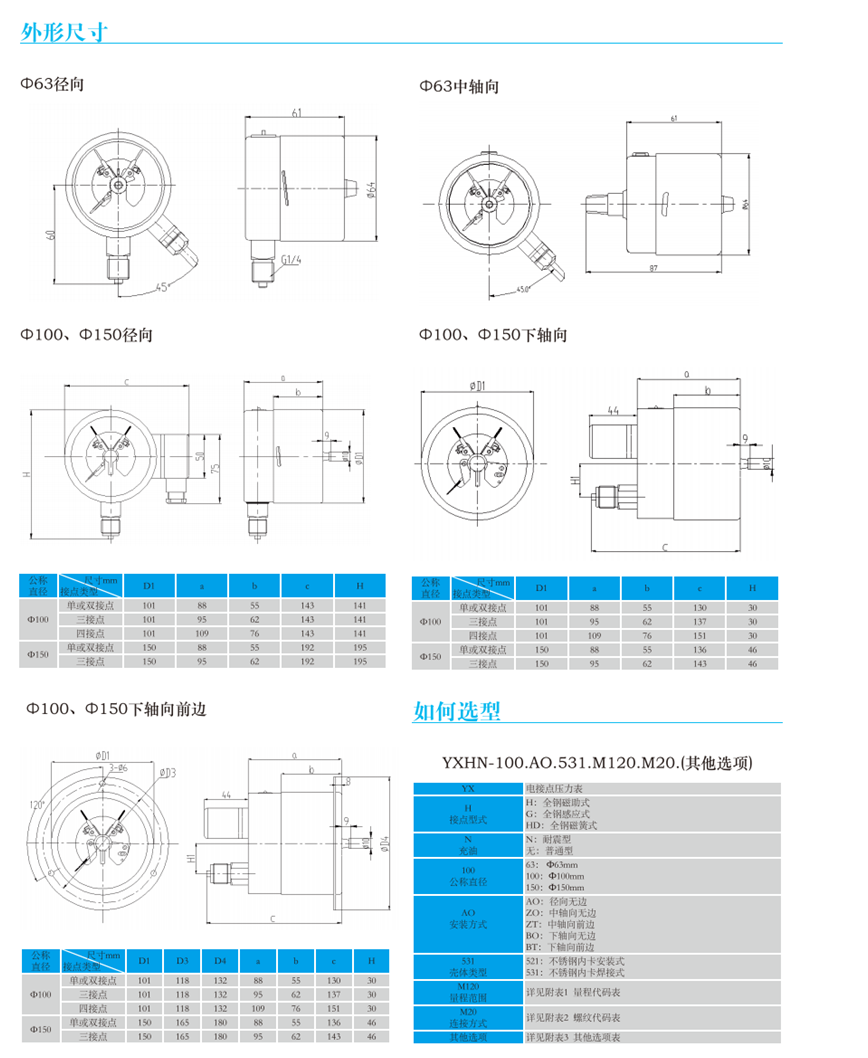

Nominal diameter: Ø 63mm, c100mm, c150mm Accuracy level:

Indication accuracy

Ø 63mm Grade 2.5

100mm Class 1.0, 1.6, 2.5

Class 1.0 and 1.6 with a diameter of 150mm

Set accuracy level 4

Measurement range: -0.1~0~0.1... 100MPa or other equivalent pressure vacuum range

Environmental temperature: -40 ℃~70 ℃

Medium temperature: -40 ℃~100 ℃

When the temperature of the measurement system deviates by 20 ± 5 ℃. The setting error does not change by more than 0.02/℃. Process connections: M20x1.5, 1/2 "NPT, G1/2"

Customizable according to user requirements

Pressure sensing element:<10MPa C-type tube

≥ 10 MPa spiral tube

Wetting material: 316L (or optional Monel)

Case material: 304SS (or 316L optional)

Material of the movement: 304SS

Instrument pointer: aluminum alloy, black

Set pointer: red and green for upper and lower limits, red for others

Instrument dial: aluminum alloy, white background with black letters

Glass: Organic glass (safety glass optional)

Protection level: IP54, IP65

Contact switch:

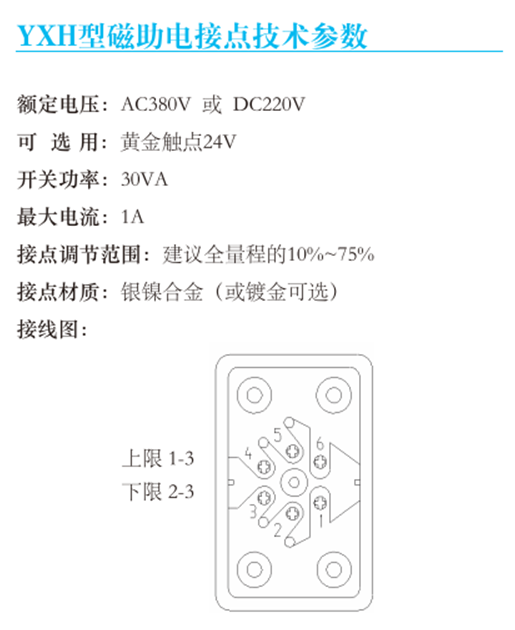

YXH magnetic assisted electrical contact

No need for control unit and additional power supply

Up to 4 sets of contact switches can be equipped for loads that can directly switch between 220V and 1A

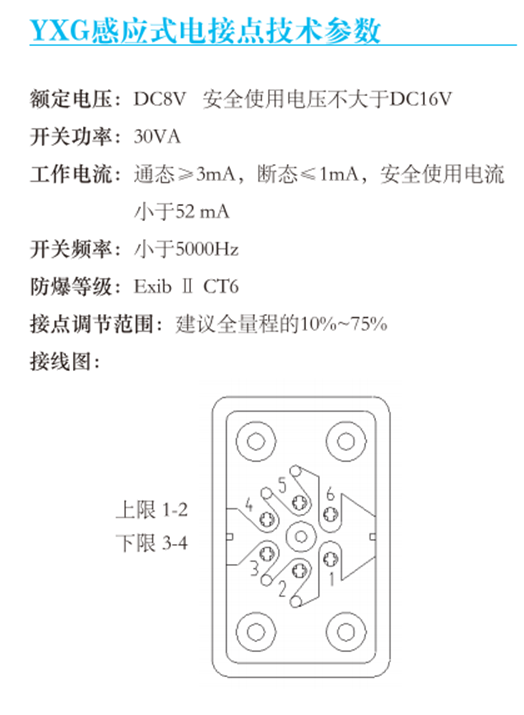

YXG Inductive Electrical Contact

Explosion proof Exib Ⅱ CT6

Non contact sensors,

Long service life

Need to be used in conjunction with safety barriers

Switches that ensure fault safety at high switching frequencies

Up to 2 sets of contact switches can be equipped

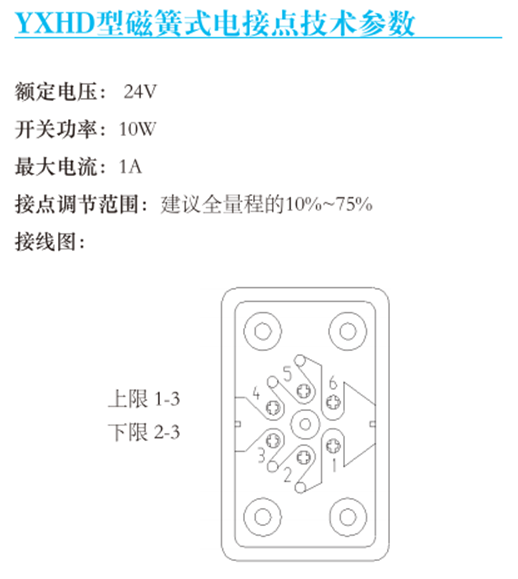

YXHD magnetic spring electric contact

No need for control unit and additional power supply

The contacts are not easily oxidized and have a long service life.

Up to 2 sets of contact switches can be equipped

Maximum voltage 24V, contact power 10W

option

Up to 4 electrical contact switches can be used

Assemble diaphragm seal

Instrument filling: Instrument specific oil

Heat sink (can adapt to higher medium temperatures)

Dual range dial

PANEL MOUNT

Diaphragm measurement: Range less than 0.1MPa
