application

The product is suitable for measuring pressure, vacuum, etc. of non viscous, non caking, non corrosive gases and liquid media. There is a contact device inside the instrument, which can be used to monitor the pressure of the medium and has multiple functions such as automatic control, alarm, and signal remote transmission. Mainly used in industries such as petroleum, chemical, metallurgy, power, food, medicine, environmental protection, and machinery.

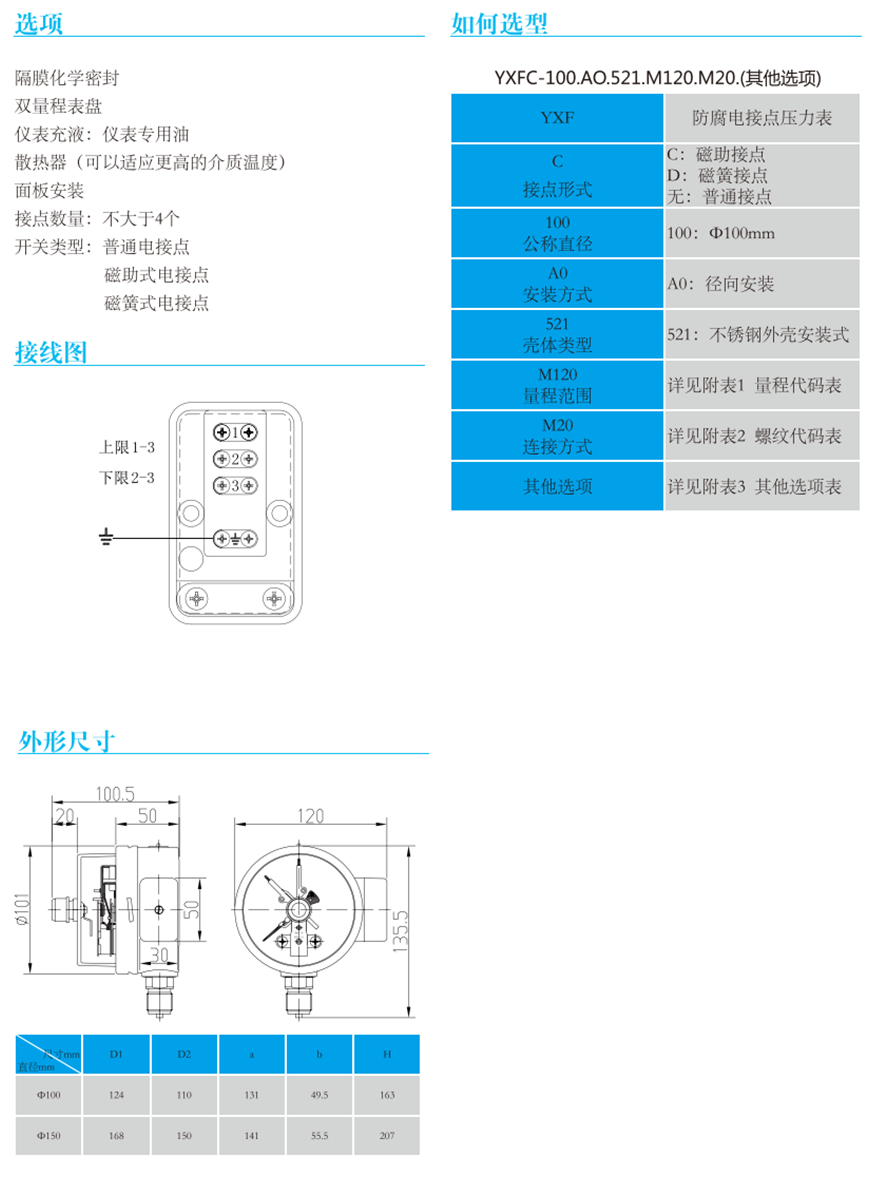

Technical Specifications

Nominal diameter of 100mm

accuracy class

Indication accuracy of 1.6 and 2.5 levels;

Set accuracy level 4.0, measurement range -0.1~0~0.1... 60MPa

Or other equivalent pressure vacuum range

Environmental temperature -40 ℃~70 ℃

Medium temperature -40 ℃~100 ℃

When the temperature of the measurement system deviates from 20 ± 5 ℃, the set error does not change by more than 0.02% ℃

Process connection M20x1.5 (customizable according to user requirements)

Pressure sensing element 10MPa C-type tube

≥ 10 MPa spiral tube

Liquid receiving material: copper alloy

Case material 304SS

Instrument pointer: black

Set pointer: red and green for upper and lower limits, red for others

Instrument glass: polycarbonate

Protection level: IP54

Contact switch:

YXF ordinary electrical contact

No need for control unit and additional power supply

Can directly switch loads of 220V and 0.7A

Up to 4 sets of YXFC magnetic assisted electrical contacts can be equipped

No need for control unit and additional power supply

Can directly switch loads of 220V and 1A

Up to 4 sets of contact switches can be equipped

YXFD magnetic spring electric contact

No need for control unit and additional power contacts

Not easily oxidized and has a long service life.

Up to 2 sets of contact switches can be equipped

Maximum voltage 24V, contact power 10W
