application

The product is suitable for media that are not corrosive to copper alloys and soldering. It can measure two identical or different pressures and indicate the pressure difference between the two measurements separately. The instrument consists of two independent measurement systems and indicator devices. Can be used for monitoring and controlling pumps, filters, etc; It can also be used for liquid level measurement inside sealed tanks. Widely used in industries such as petroleum, chemical, metallurgy, power, food, medicine, environmental protection, and machinery.

Technical Specifications

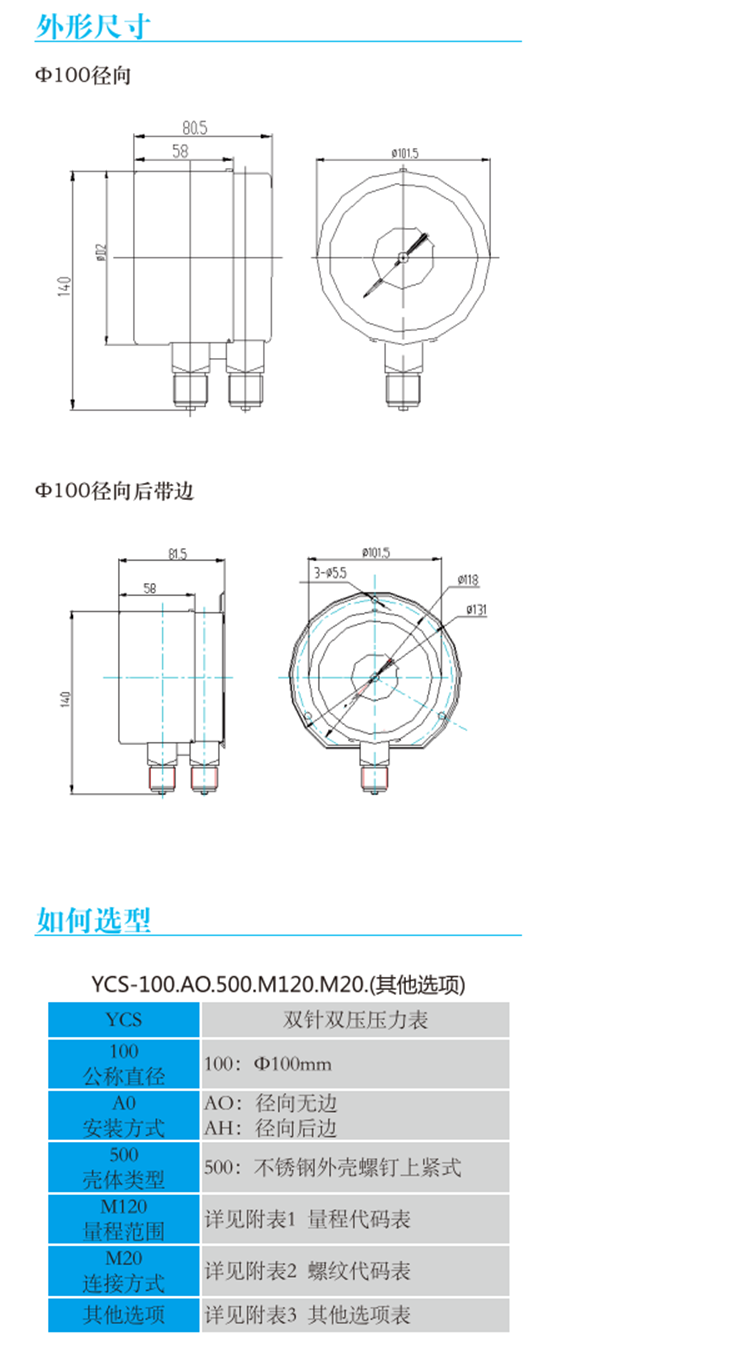

Nominal diameter: 100mm

Accuracy level: 1.6 level

Measurement range: 0~0.1... 10MPa

Environmental temperature: -40 ℃~70 ℃

Medium temperature: -40 ℃~100 ℃

When the ambient temperature deviates from 20 ℃ to 5 ℃, the indication error of the instrument shall not exceed 0.04%/℃. Process connection: M20x1.5 (can be customized according to user requirements)

Pressure sensing element: C-type tube

Liquid receiving material: Copper alloy

Case material: 304SS (316L optional)

Instrument pointer: aluminum alloy, black

Instrument dial: aluminum alloy, white background with black letters

Instrument glass: Flat glass (safety glass optional)

Protection level: IP54

option

Diaphragm chemical sealed radiator (can adapt to higher medium temperatures)
