application

The product is mainly used in the semiconductor industry and adopts processes such as pure water cleaning, oxygen free welding, and electrolytic polishing. It is produced in a clean room to ensure compliance with A-level, BA level, and EP level requirements

Technical Specifications

Nominal diameter: 50mm

Accuracy level: 1.6 level, 2.5 level

Measurement range: -0.1~0~0.1... 35Mpa

Or other equivalent pressure vacuum range

Environmental temperature: -40 ℃~60 ℃

Medium temperature: -40 ℃~100 ℃

When the ambient temperature deviates from 20 ℃ to 5 ℃, the reading error of the instrument shall not exceed 0.04%/℃.

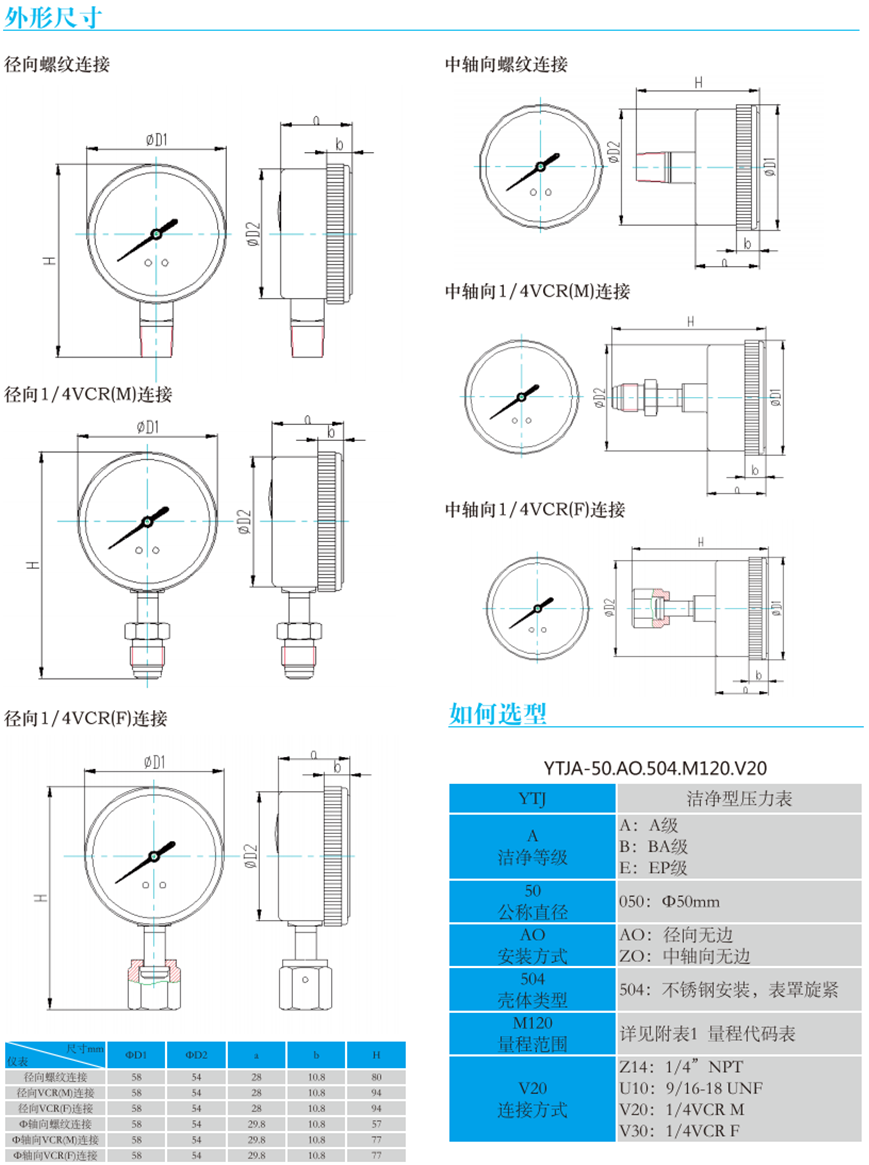

Process connection: 1/4 "NPT, 9/16-18WWF, 1/4VCRM

1/4VCR F

(Customizable according to user requirements)

Pressure sensing element:<10MPa C-type tube

≥ 10 MPa spiral tube

Liquid receiving material: 316SS

Shell material: 304SS

Instrument pointer: aluminum alloy, black

Instrument dial: aluminum alloy, white background with black letters

Sealing material: Nitrile rubber

Instrument glass: Organic glass

Protection level: IP54
