application

The product is suitable for measuring the pressure of gases and liquids that have no corrosive effect on copper alloys. There is a contact device inside the instrument, which can be used to monitor the pressure of the medium and has multiple functions such as automatic control, alarm, and signal remote transmission. Mainly used in industries such as petroleum, chemical, metallurgy, power, food, medicine, environmental protection, and machinery.

Technical Specifications

Nominal diameter: 50mm

Nominal diameter: 60mm, 100mm, 150mm

Indication accuracy: 1.6 level, 2.5 level;

Setting accuracy: 4.0 level

Measurement range: -0.1~0~0.1... 60MPa

Or other equivalent vacuum or combined pressure vacuum range

Environmental temperature: -40 ℃~70 ℃

Medium temperature: -40 ℃~100 ℃

When the temperature of the measurement system deviates from 20 ± 5 ℃, the set error change shall not exceed 0.02% ℃;

Process connection: Ø 60M14x1.5 (customizable according to user requirements) Ø 100- Ø 150 M20x1.5 (customizable according to user requirements)

Pressure sensing element:<10MPa C-type tube

≥ 10 MPa spiral tube

Liquid receiving material: Copper alloy

Case Material: Carbon Steel Spray Coating

Instrument pointer: aluminum alloy, black

Set pointer: red and green for upper and lower limits, red for others

Instrument dial: aluminum alloy, white background with black letters

Instrument glass: polycarbonate

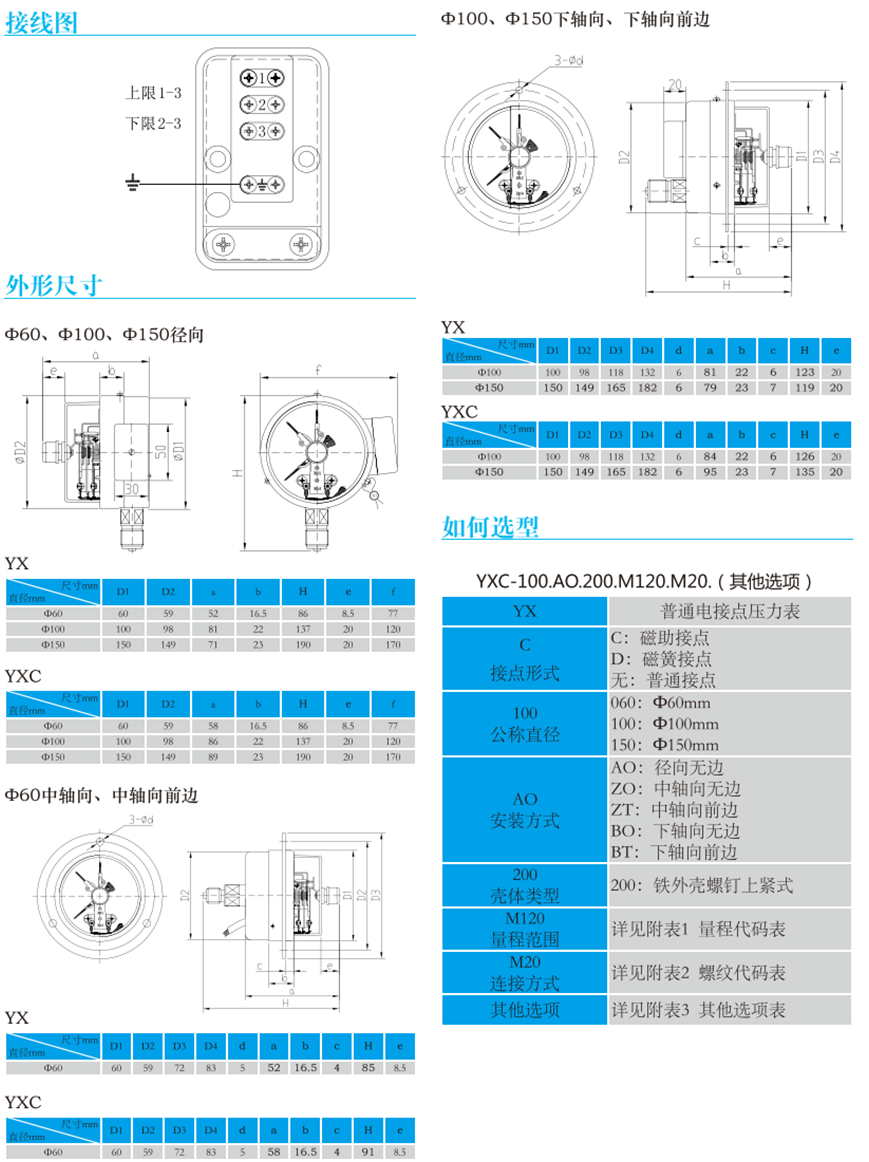

Contact switch:

YX ordinary electrical contact

No need for control unit and additional power supply

Can directly switch loads of 380V and 0.7A

Up to 4 sets of contact switches can be equipped

YXC magnetic assisted electrical contact

No need for control unit and additional power supply

Can directly switch loads of 380V and 1A

Up to 4 sets of contact switches can be equipped

YXD magnetic spring electric contact

No need for control unit and additional power supply

The contacts are not easily oxidized and have a long service life.

Up to 2 sets of contact switches can be equipped

Maximum voltage 24V, contact power 10W

option

Dual range dial

Heat sink (can adapt to higher medium temperatures)

Number of panel installation contacts: no more than 4 switch types: ordinary electric contacts, magnetic assisted electric contacts, magnetic spring electric contacts
